Details

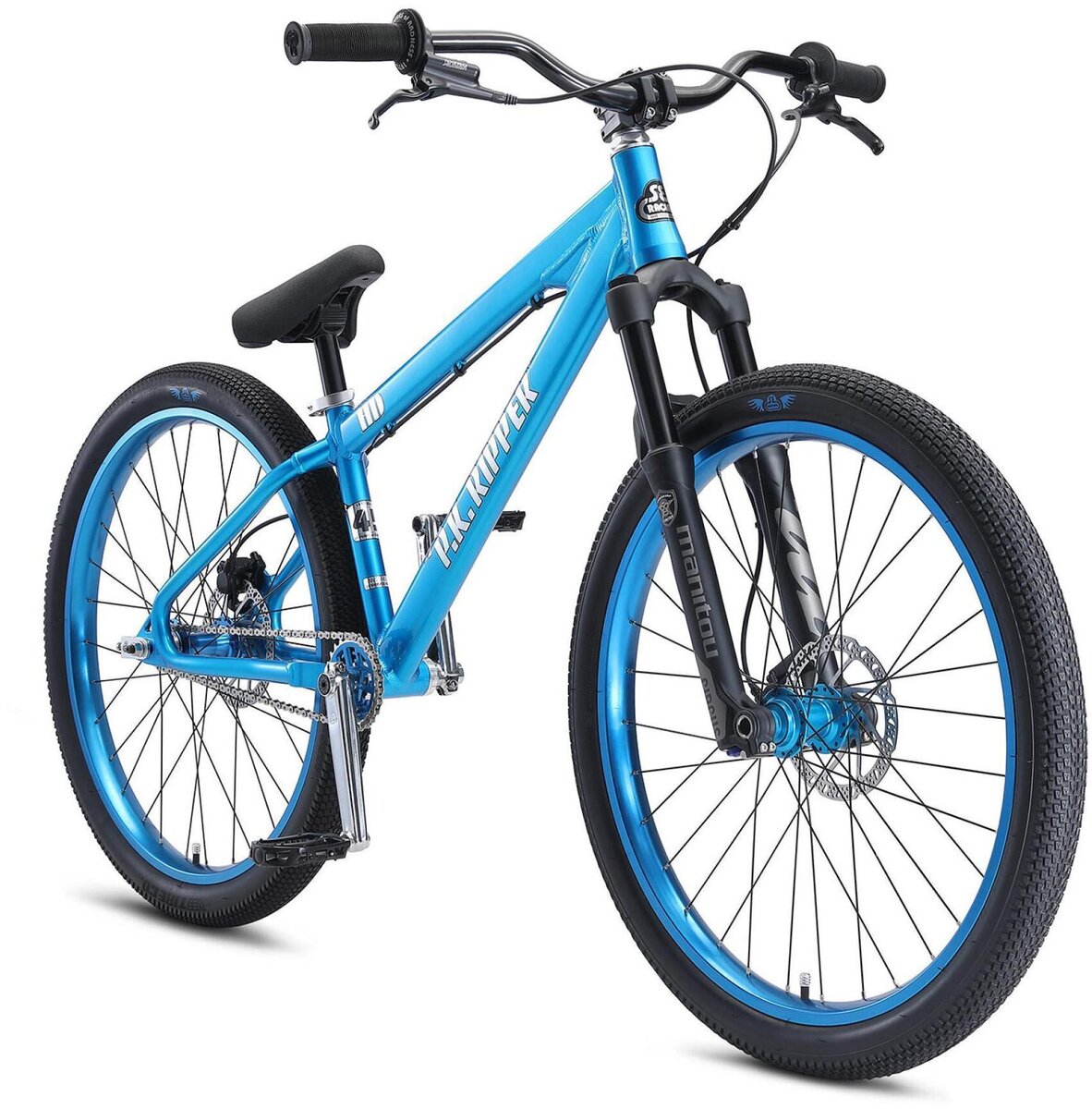

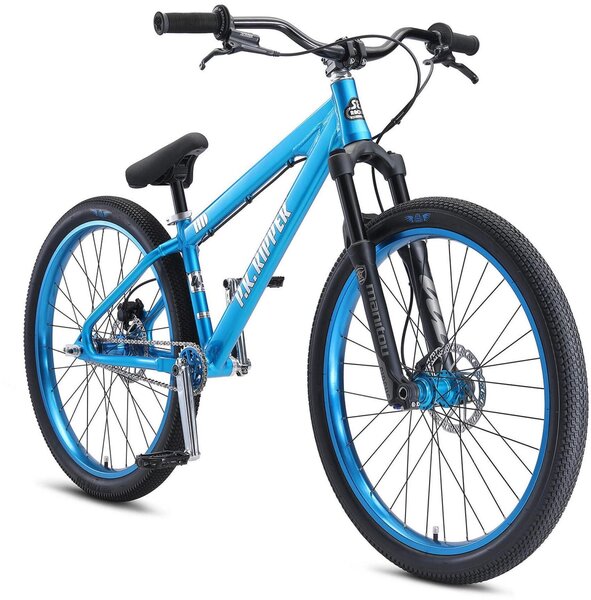

You definitely won’t get the blues while riding this blue beauty! Those color-matched blues put the DJ Ripper HD over the top this year. The frame is modeled after the legendary PK Ripper, featuring Floval tubing and a looptail rear end. And you can’t miss the tapered integrated head tube & super stiff bottom bracket yoke. The bike comes equipped with Manitou Circus Expert air compression forks that feature a 20mm thru-axle and an externally adjustable compression to lockout and rebound. For stopping power, the bike is equipped with Tektro hydraulic disc brakes. No doubt about it, the DJ Ripper HD is the most stylish and raddest dirt jumper in existence.
Specs
Frame | 6061 Aluminum Floval Tubing, Symmetrical Looptail Rear End, 1-1/8"-1.5" Tapered Integrated Head Tube, Seatstays Wrap, Disc Brake Tabs, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts |
---|---|
Fork | Manitou Circus Expert, 100mm Travel, 1.5" Tapered Alloy Steerer Tube, Hexlock 20mm Thru Axle, ABS+ Externally Adjustable Compression to Lockout & Rebound, Alloy Stanchions, ACT Air, Internal Shim Stack High Speed Damping |
Headset | Sealed 1-1/8"-1.5" Tapered, Integrated Headset |
Rims/Wheels | 35mm Double-Wall Rims, 32H |
Hubs | Alloy 32H, 20mm Thru Axle 110mm Sealed Front Hub, Nutted 135mmm Sealed Rear Hub |
Spokes | Stainless Spokes |
Tires | Vee Tire Co Two Six DJ, 26 x 2.25" Front, 26 x 2.125" Rear |
Crankset | SE V-Ridge 3-pc Cr-Mo, 175mm Cranks, 160mm Spindle Length, 19mm Spindle Diameter |
Chainwheel | 25T Alloy SE Racing Sprocket |
Bottom Bracket | External Sealed Euro Bottom Bracket |
Chain | KMC S1 |
Rear Cogs | 12T Cassette |
Handlebars | 6061 Aluminum, 29" x 2.5", 10° Backsweep, 1° Upsweep, 31.8mm Clamp Area |
Tape/Grips | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ 45 Years of Radness SE Donuts |
Stem | Alloy Front Load, Light Weight Cutouts, 31.8mm Clamp, 40mm Reach |
Brake Levers | Tektro HD-M285, 2-Finger Alloy, Front & Rear |
Brakes | Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 160mm Rotors |
Pedals | Wellgo Low-profile Platform |
Saddle | SE Pivotal Seat w/ Padding |
Seat Post | Pivotal Alloy, 27.2mm |
Seat Binder | Quick Release Seat Clamp, Alloy, 31.8mm Inner Diameter |
Accessories & Extras | Alloy Valve Caps, SE Chain Tensioners |
Weight | 30 lbs |
* Subject to change without notice.
